1x16 SC/APC Single Mode Fiber Optic Splitter PLC Splitter for FTTH and PON Networks

Brand Name : ANSHI

Model Number : AS-ODF-1X16FLP

Certification : ISO9001, SGS

Place of Origin : China

MOQ : 10 Pieces

Price : $2~$5

Payment Terms : L/C,D/P,D/A,MoneyGram,Western Union,T/T

Supply Ability : 2000 pcs/day

Delivery Time : 10000pcs/week

name : 1X16 optic plc splitter

connector type : SC/APC

insertion loss : ≤0.20

Wavelength : 1310nm/1490nm/ 1550nm

Application : CATV/FTTH/LAN/PON

Contact Now

1x16 SC/APC PLC FTTH Fiber Optic Splitter
Single Mode Optical Coupler 1x16 Fiber Optic SC APC PLC Splitter FBT

PLC splitter is a quartz substrate integrated waveguide optical power distribution device featuring compact size, broad working wavelength range, high reliability, and excellent light uniformity. It is specifically designed for passive optical networks (EPON, BPON, GPON) to connect local and terminal equipment while distributing optical signals.

The bare PLC splitter consists of a PLC splitter chip and input/output optical fiber arrays housed in a square metal tube, available with 0.9mm or 250μm bare fiber outputs. These fibers can be welded or processed with various types of optical fiber connectors.

Qingdao APT offers a comprehensive series of 1xN and 2xN splitters for specialized applications. All products comply with YD/T1117-2001 and YD-T 2000-209 standards and are TLC certified for network deployment.

Technical Specifications
Parameters 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability (-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4
Key Features
  • Continuous coverage with different fibers
  • Full fiber core structure
  • Reusable design
  • Optional fiber types
  • Low additional loss
  • Minimal insertion loss
  • Multiple configuration options (2×2, 1×2, 1×4, up to 1×128)
Applications
  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV Systems
  • FTTX Deployment
  • FTTH Network Infrastructure
  • Passive Optical Networks (PON)
  • Measuring Systems and Laser Systems
  • DWDM and CWDM Systems

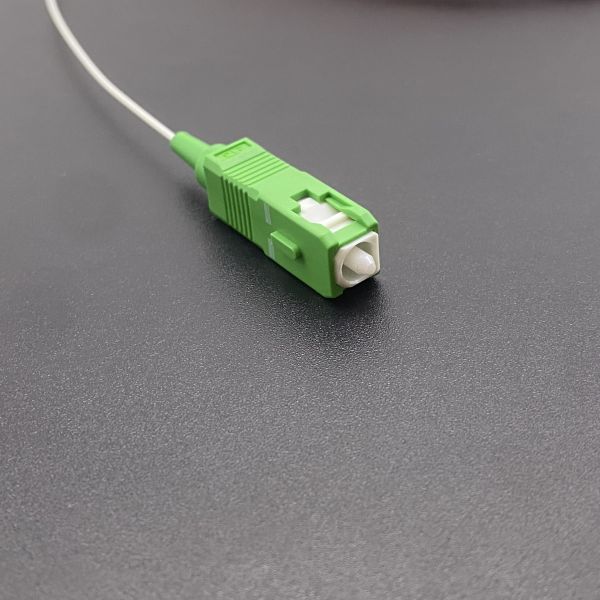

1x16 SC/APC Single Mode Fiber Optic Splitter PLC Splitter for FTTH and PON Networks

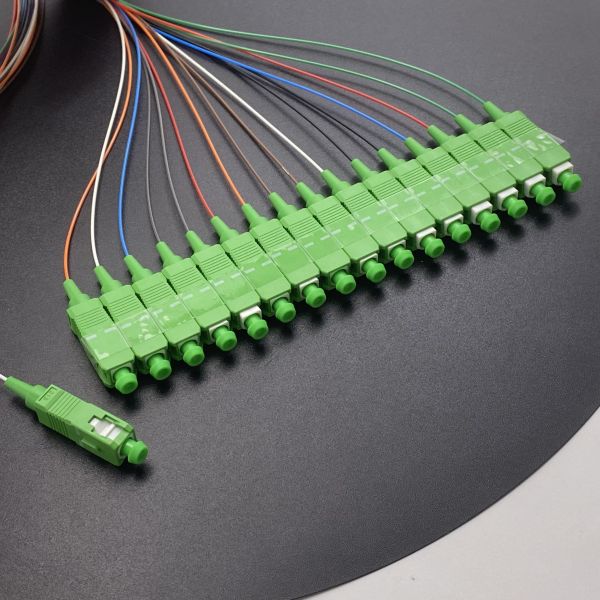

1x16 SC/APC Single Mode Fiber Optic Splitter PLC Splitter for FTTH and PON Networks

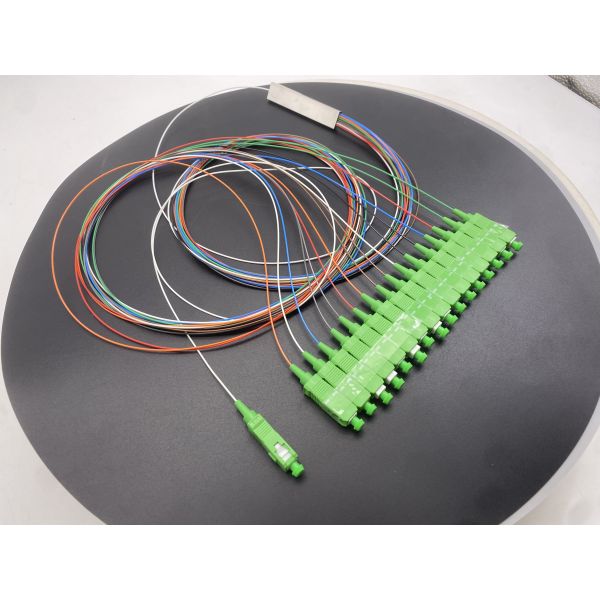

1x16 SC/APC Single Mode Fiber Optic Splitter PLC Splitter for FTTH and PON Networks

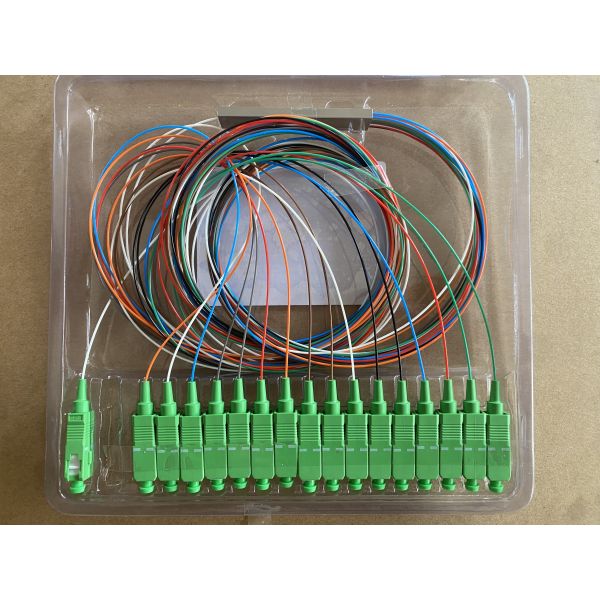

1x16 SC/APC Single Mode Fiber Optic Splitter PLC Splitter for FTTH and PON Networks
