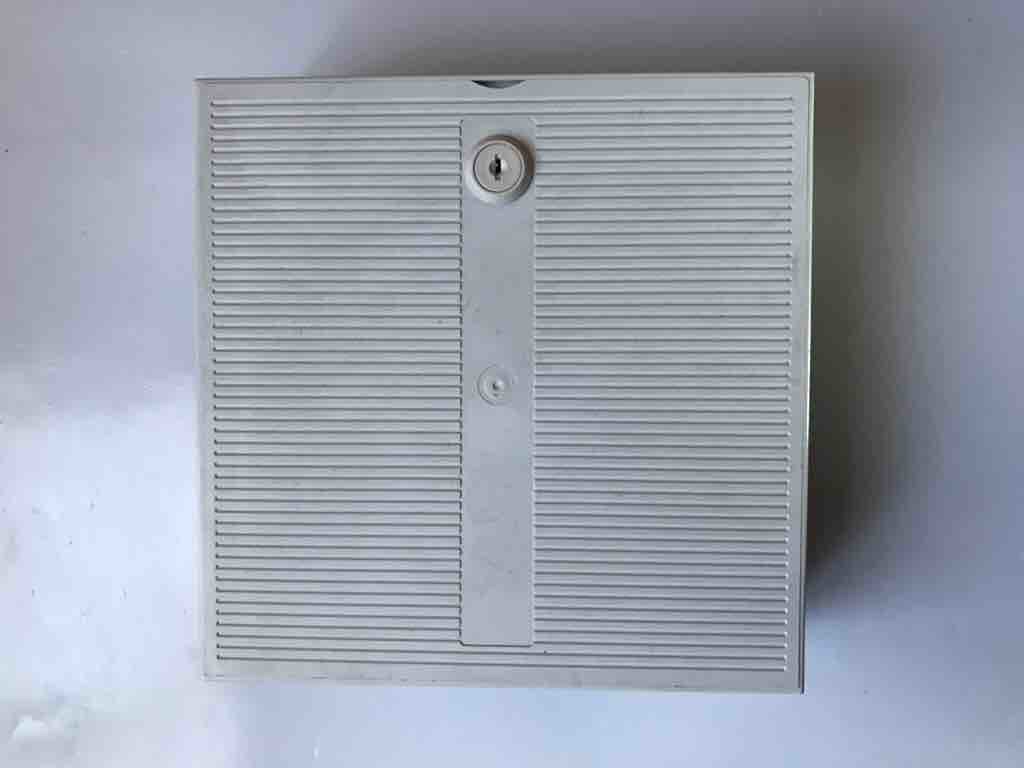

Cable Distribution Box 50-pair Indoor Coin "/" Key Lock Krone "/" LSA Distribution Box
Features:
1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
2) Waterproof box, suitable for outdoor wire distribution
3) Material of house: ABS + PC fire-resistant
4) Including stainless steel mounting frame, but modules to be ordered separately
5) Including 1 back mount frame(5ways)
6) Compatible with Krone modules
AS-DB30W:
1) Capacity: 30 pairs
2) Size: 210 x 135 x 85mm
AS-DB10W(20W)(30W)
Indoor Distribution Box (10 20 30pairs)
HIGHER FRAME FOR ETC-4008
DESIGNED FOR MODULE INSTALL THE PROTECTOR OR MAGAZINE
WALL MOUNTING FRAME FOR ETC-4008
DESIGNED FOR THE BOX MOUNT INSIDE THE WALL
Specifications:
1.Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
2.The modules are compatible with KRONE LSA-PLUS modules.
3.The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
4.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
5.Internal diameter of connection wire: 0.4-0.6 mm
6.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard
7.Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections
8.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition
9.Intermediate resistance: no more than 3m ohm under standard examination condition
10.Dielectric strength: according to industry standard
11.Specification:10-30 pairs,Waterless,every specification has connection or disconnection types
12.Life: durability 200 cycles
Product Tags:
|
|
Indoor Cable Distribution Box Coin / Key 210 X 135 X 85mm For Telecommunication Images
|
