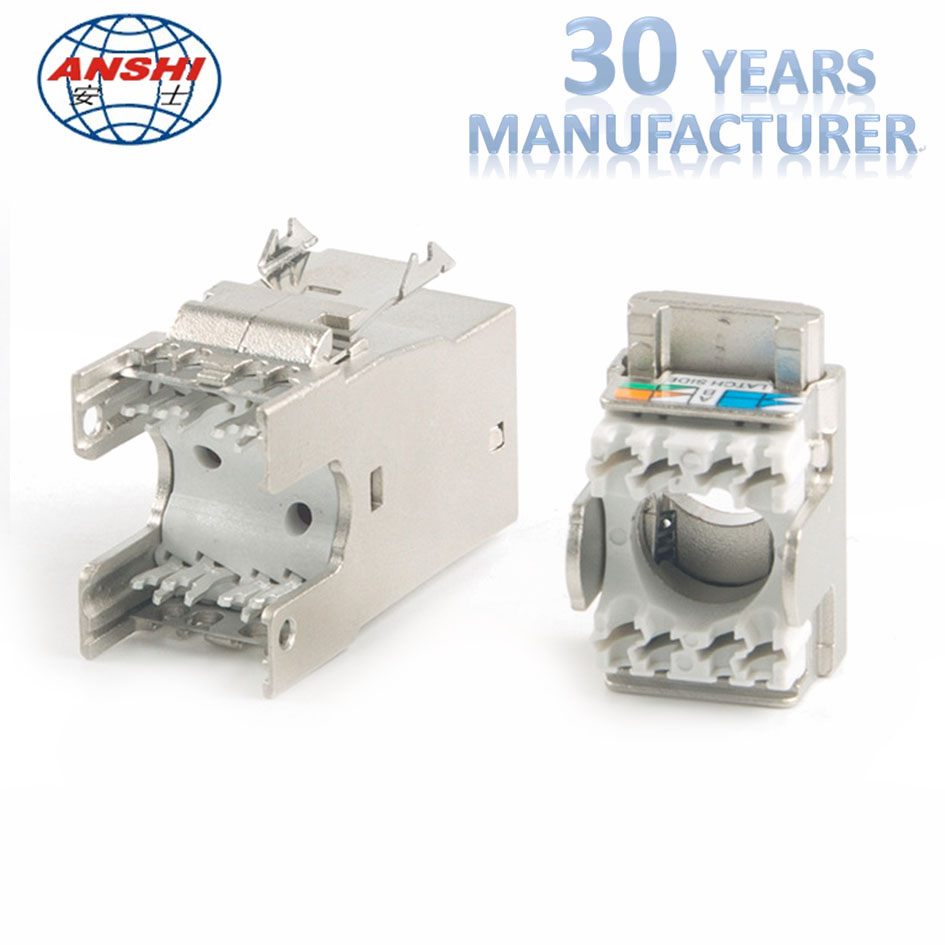

CAT6A Shielded Toolless 8P8C FTP RJ45 Keystone Jack

Brand Name : ANSHI

Model Number : AS-KEY-PLSL-6A

Certification : SGS, ISO9001

Place of Origin : ZHEJIANG, CHINA

MOQ : Negotiable

Price : Negotiable

Supply Ability : 15000 Pieces per Week

Packaging Details : 1 pc/PE Bag, 100 pcs/inner box

Product Name : Keystone Jack

Port : RJ45

Material : Metal

Category : CAT6A Shiled

install : Straight Through

Contact Now

Ethernet CAT6A FTP RJ45 Toolless 8P8C Keystone Jack

Electrinic Voltage Rating :125 VAC RMS
Current Rating : 1.5AMP
Contact Resistance:110 Milliohs MAX.
Insulation Resistance:1 000 megohms MIN 500 VDC
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
Environment Storge: -40~ 85°c
Operation: 0~70°c
Machanical Housing Material: PBT-UL90V-0
Panel Fram: Carbon Steel, Powder Coating in black color
Contact Material: PC-UL90V-0
Contact: Phosphor Bronze with Nickel Plating
RJ45 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26
Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB
Retentiveness of insertion structure:50N 60±5s

  • Electrical:
  • Voltage rating: 125V AC rms
  • Current rating: 1.5Amp
  • Contact resistance: 100m Ohms (maximum)
  • Insulation resistance: 1,000M Ohms (minimum) at 500V DC
  • Dielectric strength: 750V AC rms, 60Hz and one minute
  • Environment:

    Cat3 Cat5e Cat6 keystone jack white

    Storage temperature: -40 to +85°C

    Operating temperature: 0 to 70°C

    Conform to TIA/EIA 568B category 5e

  • Mates with modular plug conforming to FCC part 68 and subpart F
  • Mechanical:
    • Housing material: PC UL94V-0
    • Inner material: flame-retardant ABS UL94V-0
    • PCB material: FR-4
    • Thickness: 1.6mm
    • Contact material: phosphor bronze stamp and PIN T=0.35mm
    • IDC contact material: phosphor bronze, T=0.50mm with nickel plating
    • Wire: 24 to 26AWG

  • Payment mothod Accepted:

    1) Paying with Paypal

    2) Paying with Westunion

    3) Paying with T/T Bank

    Shipping and delivery details:

    1); :sample or trial order: 2 working days

    2): Official order: 5 days after paymen

    3): Package: PE bag, or Customized with Blister or Slide Card or Gift box etc

    Warranty and terms:

    -Warranty year is 1 year under normal use!

    CAT6A Shielded Toolless 8P8C FTP RJ45 Keystone Jack

    CAT6A Shielded Toolless 8P8C FTP RJ45 Keystone Jack

    100 PCS/BOX
