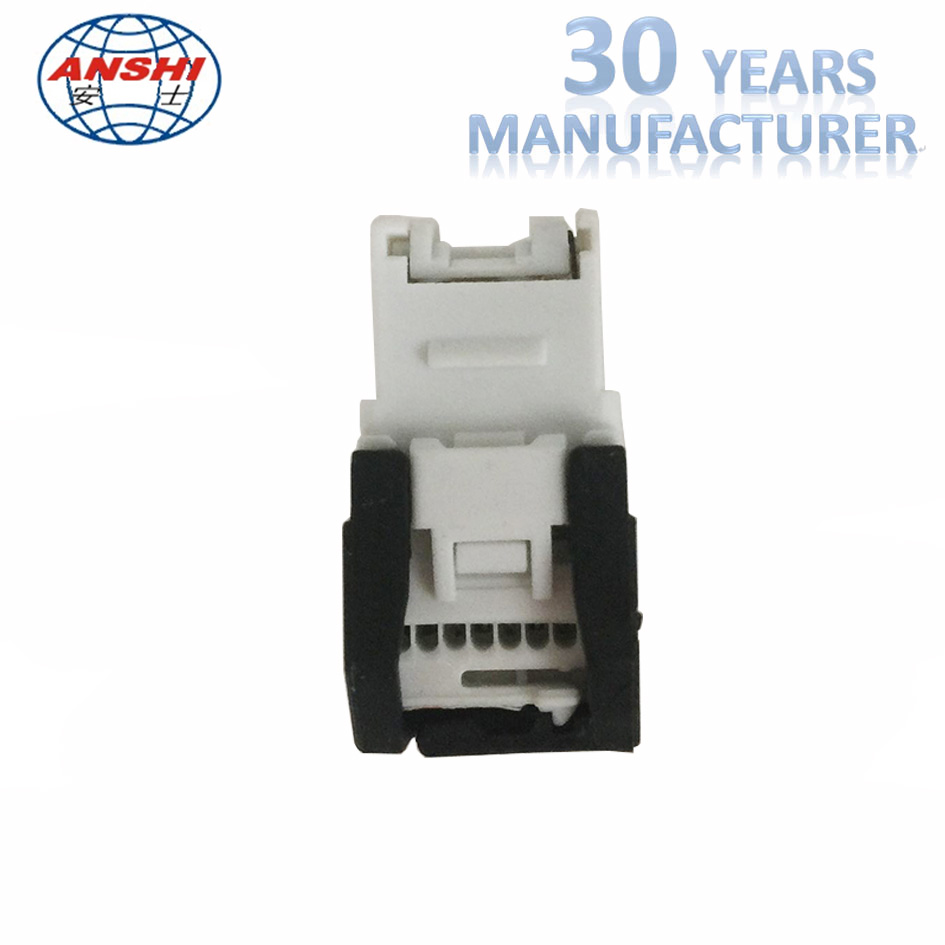

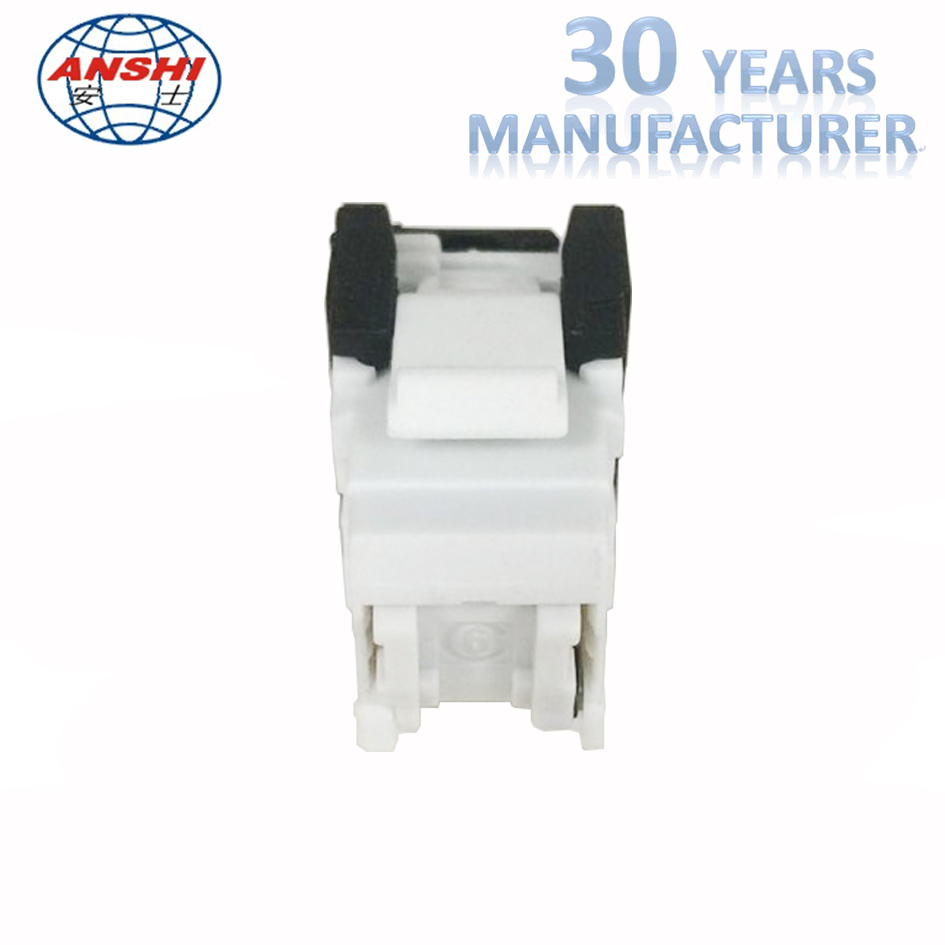

Unshielded 3M Type CAT6 UTP RJ45 Keystone Jack

  • 1
  • 2
  • 3

Brand Name : ANSHI

Model Number : XL-KEY-3M-01

Certification : SGS, ISO9001, DAS

Place of Origin : ZHEJIANG, CHINA

MOQ : Can discuss

Price : Negotiable

Supply Ability : 30000 Pieces per day

Contact : Phosphor bronze

plating : gold plating

Port&Pin : 8P8C

color : White and Black

Category : CAT6 UTP

material : ABS or PC

Contact Now

RJ45 3M Type UTP CAT6 Unshiled Keystone Jack​

3M Keystone Jack Specifications:

  • Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 /5Erequirements.
  • Meet TIA/EIA TSB-40
  • Meet ISO/IEC Generic Cabling Standard 11801
  • Meet CENELEC Generic Cabling Standard EN50173
  • Angle: 180 Degree
  • Termination: Krone- 110- DUAL Type

3M Keystone Jack Electrical:

  • According to UL 1863
  • Current rating: 1.5 Amp Max.
  • Voltage rating: 150 Volts
  • Contact resistance: 20 m-ohm
  • Insulation Resistance: 500M-ohm
  • Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

3M Keystone Jack Materials:

  • Housing: PC UL94V-0
  • IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
  • PCB: FR4 1.6mm(0.04") thickness, 2 layers
  • Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.

Unshielded 3M Type CAT6 UTP RJ45 Keystone JackUnshielded 3M Type CAT6 UTP RJ45 Keystone JackUnshielded 3M Type CAT6 UTP RJ45 Keystone Jack
